SHOCKPAD FOR ARTIFICIAL TURF SYSTEMSGrass

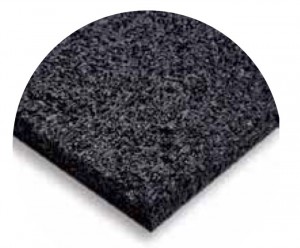

ECORE’S SHOCKPAD IS A PREFABRICATED, RECYCLED RUBBER PAD
ENGINEERED FOR INSTALLATION UNDERNEATH ARTIFICIAL TURF SYSTEMS.

• Engineered to provide ideal G-Max ratings over the life of your field
• Plays like well-conditioned natural grass (G-Max in the 95-110 range) • Reduces the risk of injury to the athlete without sacrificing performance • Lower installed cost than e-layers and alternative pad systems
• Factory controlled manufacturing ensures consistency of product
• Highly resilient in all weather conditions
• Excellent drainage properties


REDUCE • REUSE • RECYCLE

• Reusable when artificial turf is replaced
• Comprised of 93% post-consumer recycled content, ShockPad will last, on average,

three life cycles of the turf system, and it will increase the life expectancy of the turf
• Made in the U.S.A., ShockPad is available in 4-foot-wide rolls with custom cut lengths,

in 8mm, 10mm, and 12mm


WHAT IS G-MAX?

The “G” in “G-Max” stands for gravity. G-Max measures the shock attenuation value of a surface. The higher the number, the less shock absorption.
The lower the rating, the more shock absorption.


HOW SHOCKPAD COMPARESDirt

When ShockPad is installed under an artificial
turf system, the G-Max rating is similar to that
of well-conditioned natural grass. Compared to
turf systems without a pad, ShockPad systems
have a better G-Max both initially and over the
lifetime of the pad. Turf systems without a pad
are harder and will compact over time. Shock-
pad will last, on average, for 30 years, and it will
increase the life expectancy of the turf. The durability of this 93% post-consumer recycled product allows it to be reused when the artificial turf is replaced.

©2014 All designs, text and colors are copyrighted by ECORE Intl.


PRODUCT DIMENSIONS

Thickness Weight (lbs/sq ft)
48” width 8 mm (0.31) 1.1
48” width 10 mm (0.39) 1.3
48” width 12 mm (0.47) 1.6

PHYSICAL DATA SHEET

ASTM 6010 SP Rolls
Density D297 37 lb./cu. ft. min
Tensile Strength D412, Die C 44 psi min
Elongation at Break D412, Die C 35% min
Compression/Recovery F36 Compression Recovery
@ 50 psi   nominal 30% 90% min
@ 100 psi   nominal 45% 90% min
@ 200 psi   nominal 60% 90% min
Flexibility F137 0-1 Factor
Temperature Stability   -40o to +115oC (-40o to +240oF)
Post Consumer Recycled Content   93%
Water Permeability DIN 18035/6 0.9 cm/s
Fire Resistance DIN 4102 Class B2

Test data has been taken from original manufactured product in ECORE’s laboratory. However, due to differences in calibration and lab equipment, slight variations may occur when tested in the field.


TECHNICAL INFORMATIONEA

INSTALLATION

ShockPad rolls can be installed over properly prepared concrete, asphalt, or compacted stone sub-bases. Rolls are factory-cut to job specified lengths to reduce scrap and minimize installation handling and time. Seams are to be butt-joined along all the joints prior to installation of the turn system. For more detailed installation recommendations, please request a ShockPad Installation Manual.

WARRANTY

All ShockPad is guaranteed by ECORE International to be free from manufacturing defects on both material and workmanship. If such a defect is discovered, the customer must notify ECORE either through the contracting installer, distributor or directly. If found to be defective within three years under normal non-abusive conditions, the sole remedy against the seller will be the replacement or repair of the defective goods, or at the seller’s option, credit may be issued not exceeding the selling price of the defective goods.

Download PDF Ecore_Shockpad_datasheet
